In the previous post, I made a simple offline-only translator app using Mozilla's models.

I wanted to add the capability to translate images, similar to Google translate, so here we are.

I started with some basic research, and found that the most popular libraries for OCR are Tesseract and EasyOCR. I immediately discarded EasyOCR because it's Python (maybe there's a way to run the models without Python? Unclear) and because it has much higher resource requirements; I'm not sure that the average phone can handle it.

Luckily, this time I didn't need to go down the CMake death spiral¹, as there's Tesseract4Android, which already takes care of the build & generating bindings for Java.

I didn't document the process as I was going along, so this post won't be too detailed, and the code blocks are "synthesized" from the current codebase.

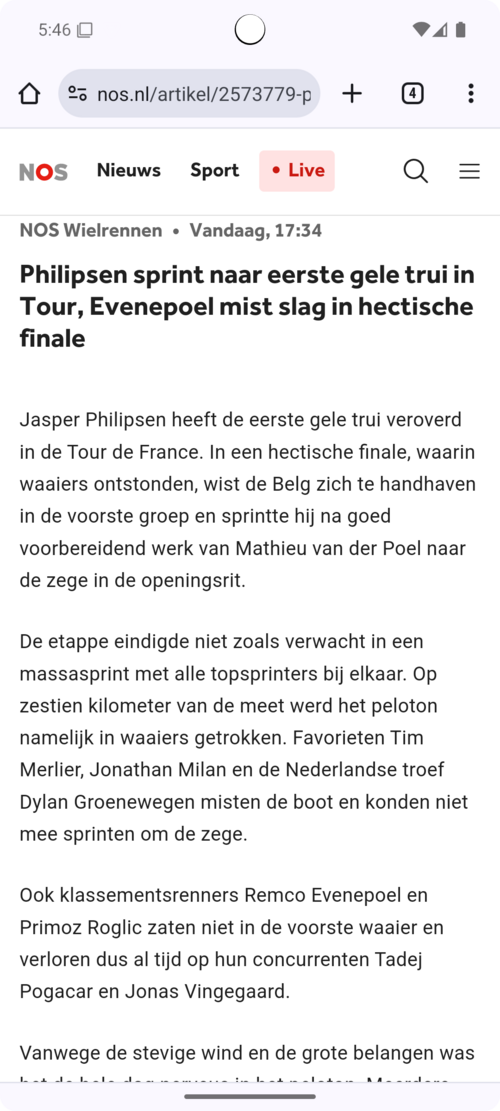

Let's pick an easy starting point, a screenshot of some news article, in some undecipherable language:

We can use Tesseract4Android to get all the text in the image with getUTF8Text

val p = File(context.filesDir, "tesseract").toPath()
val tessdata = Path(p.pathString, "tessdata")
val dataPath: String = p.absolutePathString()
tessdata.createDirectories()

// Here we somehow would need to download the tessdata files

val tess = TessBaseAPI()
tess.init(dataPath, "eng+nld")
tess.setImage(bitmap)
tess.setPageSegMode(TessBaseAPI.PageSegMode.PSM_AUTO_OSD)
println(tess.getUTF8Text())

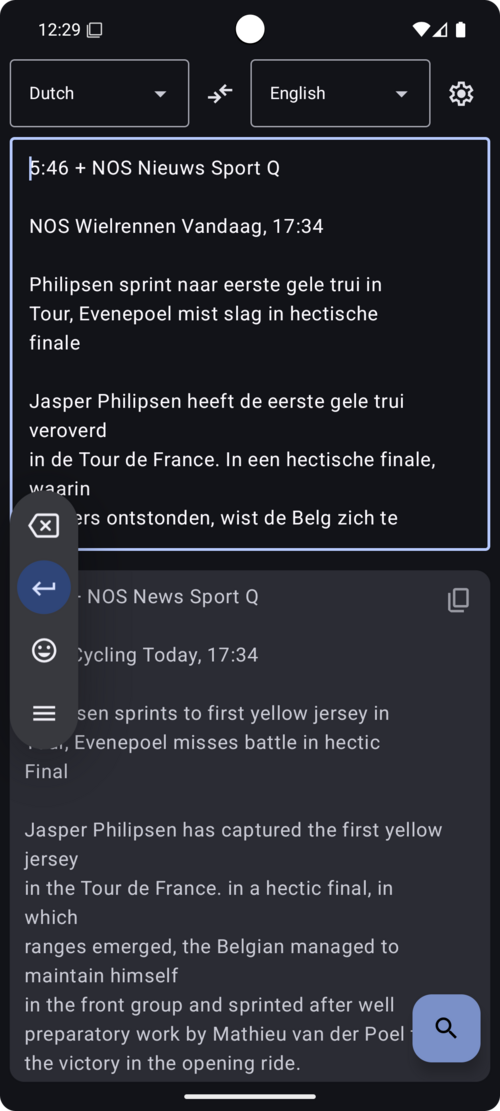

This already works pretty well!

The goal though, is to render the translation on top of the original image

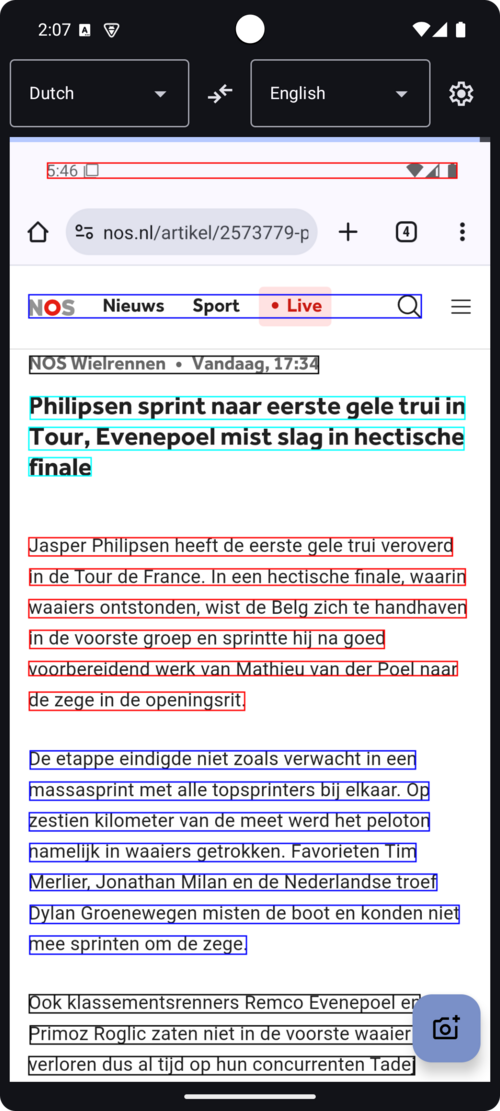

A reasonable starting point is to identify the lines of text within the image, and which block they belong to

// Populates internal Tesseract structures, so we can use resultIterator
tess.getHOCRText(0)
val iter = tessInstance.resultIterator
iter.begin()
do {
  val boundingRect = iter.getBoundingRect(RIL_TEXTLINE)
  canvas.drawRect(boundingRect, paint)
  if (iter.isAtFinalElement(RIL_BLOCK, RIL_TEXTLINE)) {
    paint.color = nextColor
  }
} while (iter.next(RIL_TEXTLINE))

We need to extract every word, and then decide whether it's part of the previous block or not, at the same time, we need to get the bounding boxes for every line, so that we can later render text in the same place.

This code accumulates words into lines and lines into blocks; the bounding box of each line can be 'stretched' vertically by followup words

val blocks = mutableListOf<TextBlock>()
var lines = mutableListOf<TextLine>()
var line = TextLine("", Rect(0, 0, 0, 0))
do {
    val firstWordInLine = iter.isAtBeginningOf(RIL_TEXTLINE)
    val lastWordInLine = iter.isAtFinalElement(RIL_TEXTLINE, RIL_WORD)
    val lastWordInPara = iter.isAtFinalElement(RIL_PARA, RIL_WORD)
    val word = iter.getUTF8Text(RIL_WORD)
    val boundingBox = iter.getBoundingRect(RIL_WORD)
    if (firstWordInLine) {
        line = TextLine(word, boundingBox)
    } else {
        line.text = "${line.text} ${word}"
        line.boundingBox = Rect(
            // left is immutable
            line.boundingBox.left,
            // top can be stretched upwards ('g' -> 'T')
            min(
                line.boundingBox.top,
                boundingBox.top
            ),
            // Right takes the right of the new word always
            boundingBox.right,
            // bottom can be stretched ('a' -> 'g')
            max(
                line.boundingBox.bottom,
                boundingBox.bottom
            )
        )
    }
    if (lastWordInLine && line.text.trim() != "") {
        lines.add(line)
        line = TextLine("", Rect(0, 0, 0, 0))
    }

    if (lastWordInPara && lines.isNotEmpty()) {
        blocks.add(TextBlock(lines.toTypedArray()))
        lines = mutableListOf()
    }
} while (iter.next(RIL_WORD))

To test how well this extraction works, we can re-render the original text on top of the respective lines.. let's hardcode the background as white and the text as black for now

textBlocks.forEach { textBlock ->
    textBlock.lines.forEach { line ->
      canvas.drawRect(line.boundingBox, bgPaint)
      canvas.drawText(line.text, 0, line.text.length,
                      line.boundingBox.left.toFloat(),
                      line.boundingBox.top.toFloat(),
                      textPaint)
    }
}

First, the alignment is off, this is because we need to consider the font's ascent in its Y position; but we'll strategically ignore this for now.

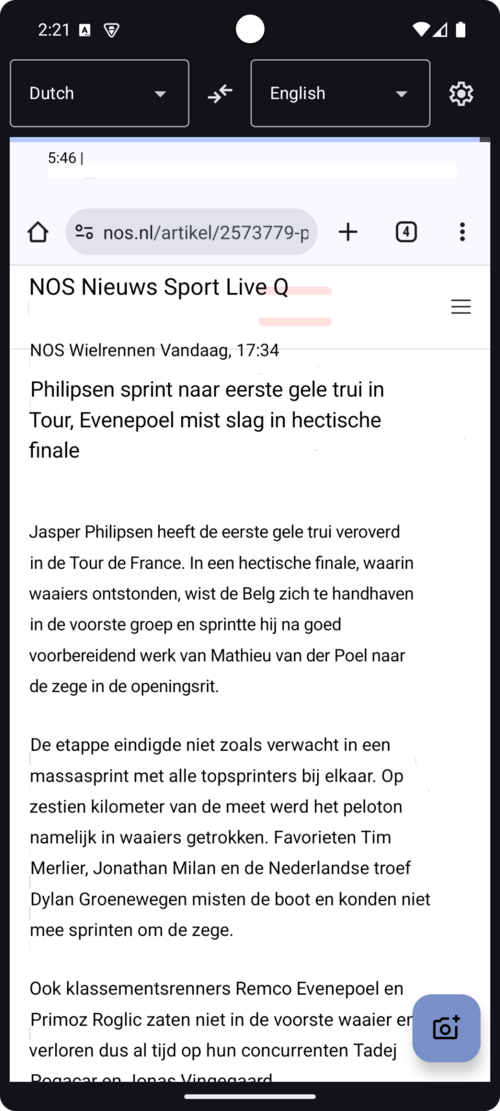

Second, the font-size changes quite a bit between lines, we can average the font size for each block:

textBlocks.forEach { textBlock ->
    val blockPixelHeight = textBlock.lines.map { textLine -> textLine.boundingBox.height() }
    textPaint.textSize = blockPixelHeight.average().toFloat()
    textBlock.lines.forEach { line ->
        canvas.drawRect(/**/)
        canvas.drawText(/**/)
    }
}

Now, we want to actually translate the content, not just re-render the original text, so we take each block and call translate on it individually.

However, we can't place the text on the previously detected "lines" anymore, as there's no 1-1 mapping between the original and translated text.

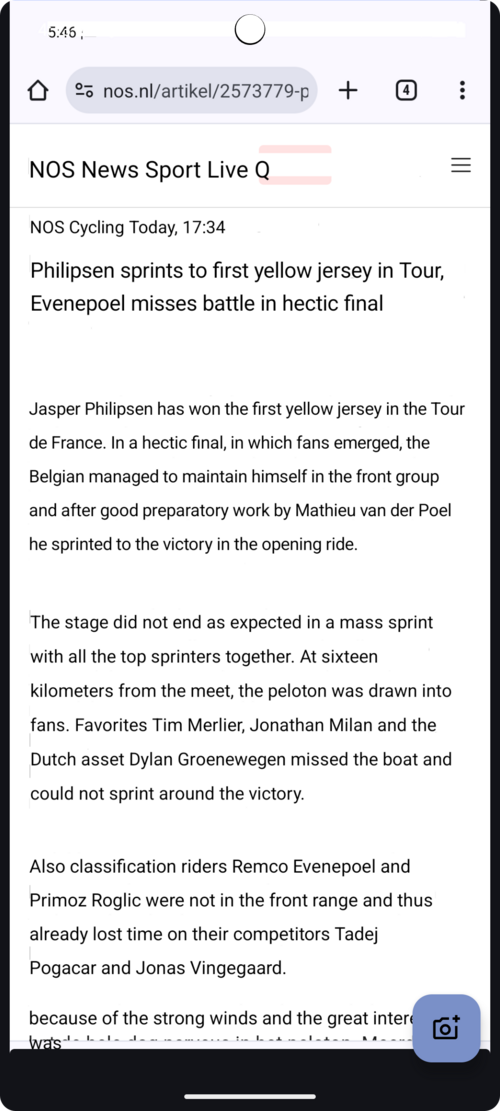

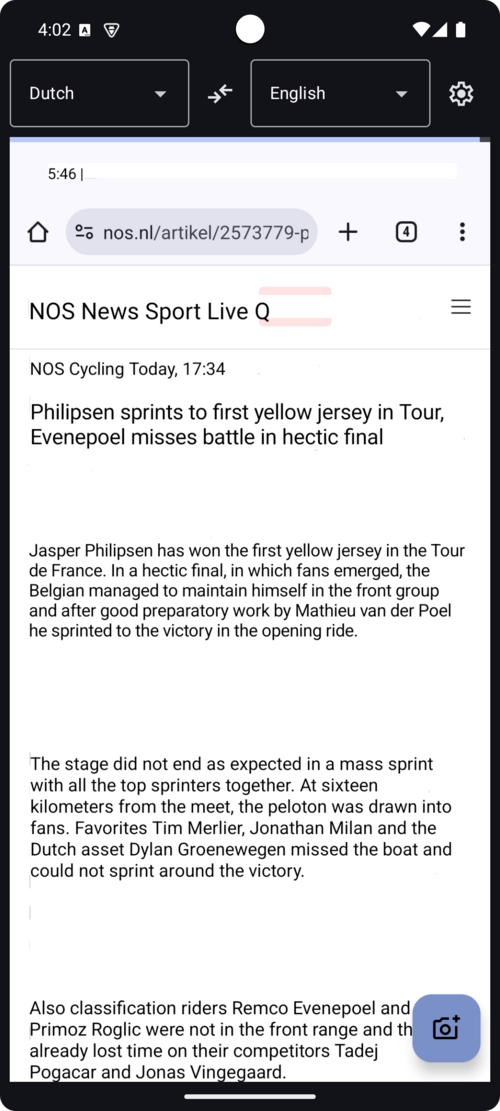

For now, we can use StaticLayout, which, when provided with a bounding box and some text, will properly render the text (including word wrapping, inter-line spacing, etc) and see pretty good results:

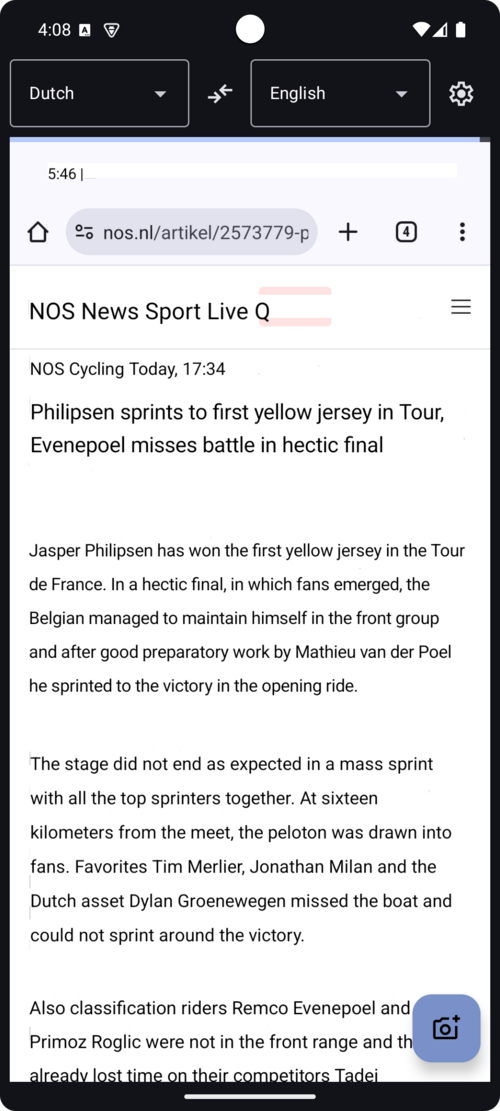

It's nice, but we can at least make the blocks the same size using inter-line spacing (compare each line's top to previous line's bottom, get an average).

Let's do a comparison so far

It's not perfect but it's pretty good!

Let's move from an easy screenshot to something that's still easy, but much harder: a picture of some text²

If we use the code we have so far with this image, we can see a few issues

• Assuming black text on white background was fine before, but now it's really not.
• There's some misalignment on the text vs lines
• The assumption that the text occupies a square (left and right edges are constant for every line) does not hold.

First, let's stop using StaticLayout, it's not good enough. We will need to manually lay the text out.

A simple way to start, is to measure how many letters from the translated text we can fit in each line with breakText, then draw them in the correct position.

Something like this

textBlock.lines.forEach { line ->
    val measuredWidth = FloatArray(1)
    val countedChars = textPaint.breakText(
        translated, start, translated.length, true,
        line.boundingBox.width().toFloat(), measuredWidth
    )
    canvas.drawText(
        translated,
        start,
        translated.length,
        line.boundingBox.left.toFloat(),
        line.boundingBox.top.toFloat() - textPaint.ascent(),
        textPaint
    )
}

would work, as long as we can guarantee that the new text will fit within the space of the original lines.

The property "the translated text fits in the same space as the original text" is very useful, and we can make it hold with a very simple technique: shrink the font size until the new text fits the original space.

val totalBBLength = textBlock.lines.sumOf { line -> line.boundingBox.width() }

// Ensure text will fit the existing area
while (textPaint.measureText(translated) >= totalBBLength) {
    textPaint.textSize -= 1
}

I think that most of the time you can get the background color of a line of text by sampling the image around the text (not including the actual text).

But then, how do you pick the foreground color? Probably³ it will be the color with the highest contrast relative to the background we just picked, but this time, we only sample the lines of text, instead of their surroundings:

fun getForegroundColorByContrast(bitmap: Bitmap, textBounds: Rect, backgroundColor: Int): Int {
    val pixels = IntArray(textBounds.width() * textBounds.height())
    bitmap.getPixels(pixels, 0, textBounds.width(), textBounds.left, textBounds.top, textBounds.width(), textBounds.height())

    val bgLuminance = getLuminance(backgroundColor)

    return pixels.maxByOrNull { pixel ->
        getColorContrast(pixel, bgLuminance)
    } ?: Color.BLACK
}

fun getColorContrast(color1: Int, bgLuminance: Float): Float {
    val lum = getLuminance(color1)
    val brighter = maxOf(lum, bgLuminance)
    val darker = minOf(lum, bgLuminance)

    return (brighter + 0.05f) / (darker + 0.05f)
}

with all of this in place, it starts looking much better!

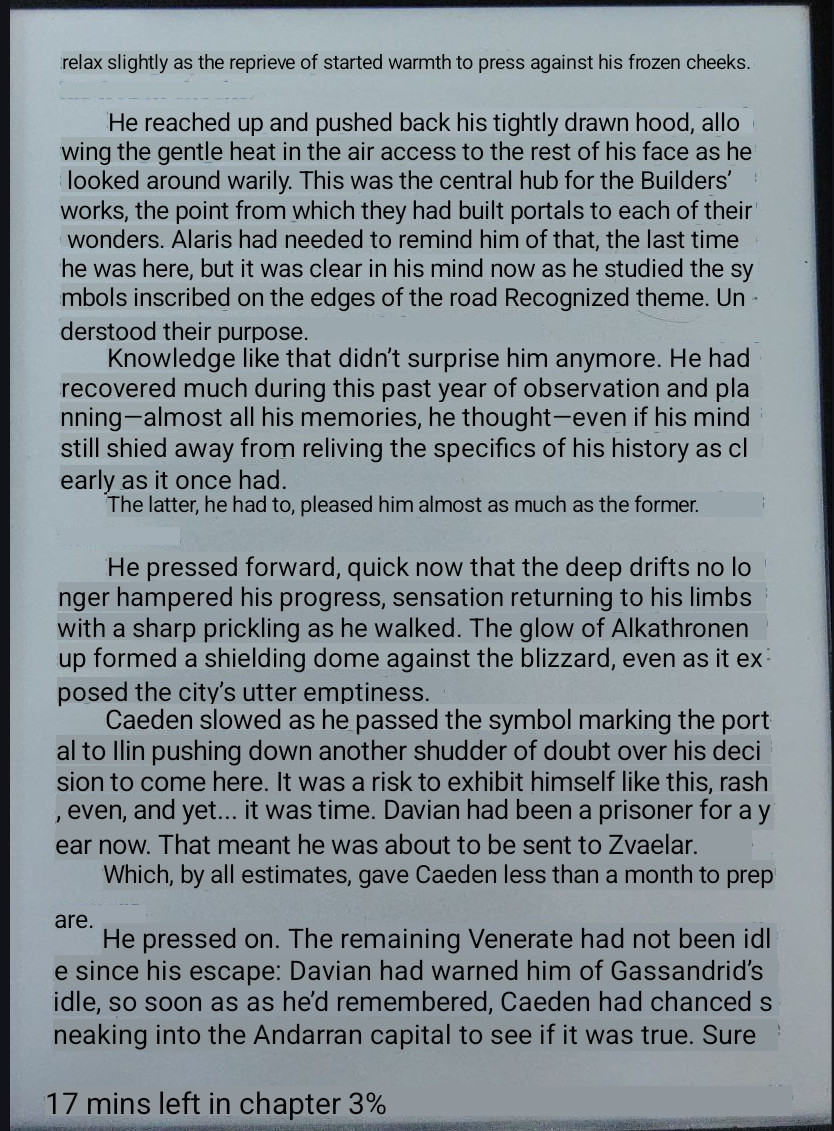

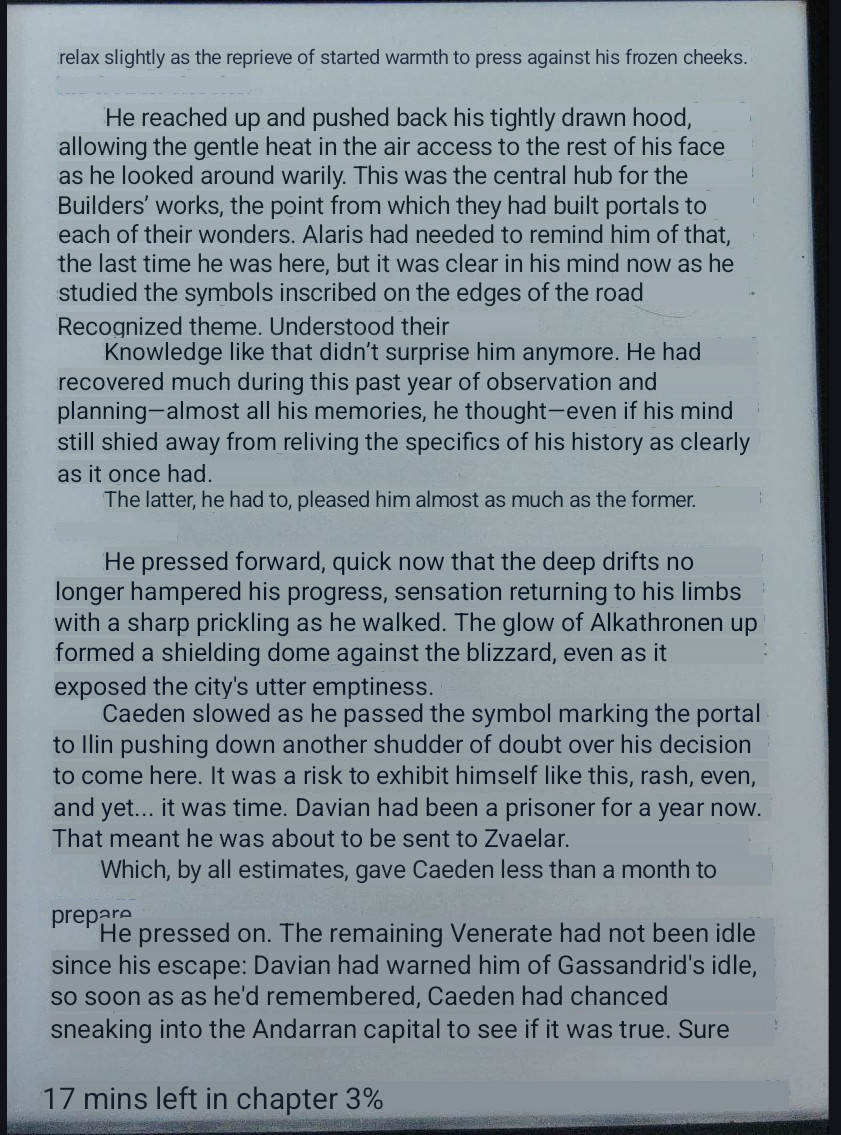

The only thing missing, is word wrapping (the second sentence splits allowing into allo and wing); we can do this fairly trivially:

1. Count how many letters we can render in this line
2. If the last letter we can fit is not a space, backtrack until the previous word.

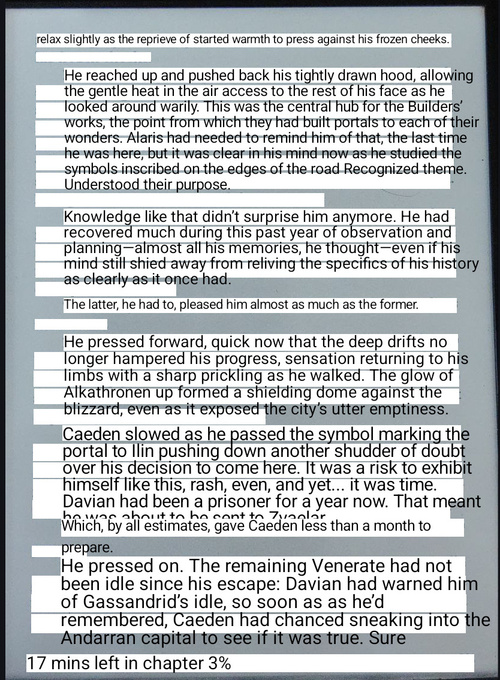

The only "tricky" thing, is that now the text may spill over the allocated area, because we are "wasting" some space at the end of each line for word-wrapping.

My solution for this was to consider the total available space to be 95% ¯\_(ツ)_/¯:

// 5% padding for word wrap
val totalBBLength = textBlock.lines.sumOf { line -> line.boundingBox.width() } * 0.95f

If multiple items are on the same line, but there are horizontal gaps between them (for example: UIs), it would render as a single line of text (without spaces).

For this, I added a new heuristic: calculate whether each word is "at least 3 characters to the right" from the previous word.

The "3 characters" thing is tricky, because it uses the current word for measurement, and letters have different widths.. but it seems OK on my test cases.

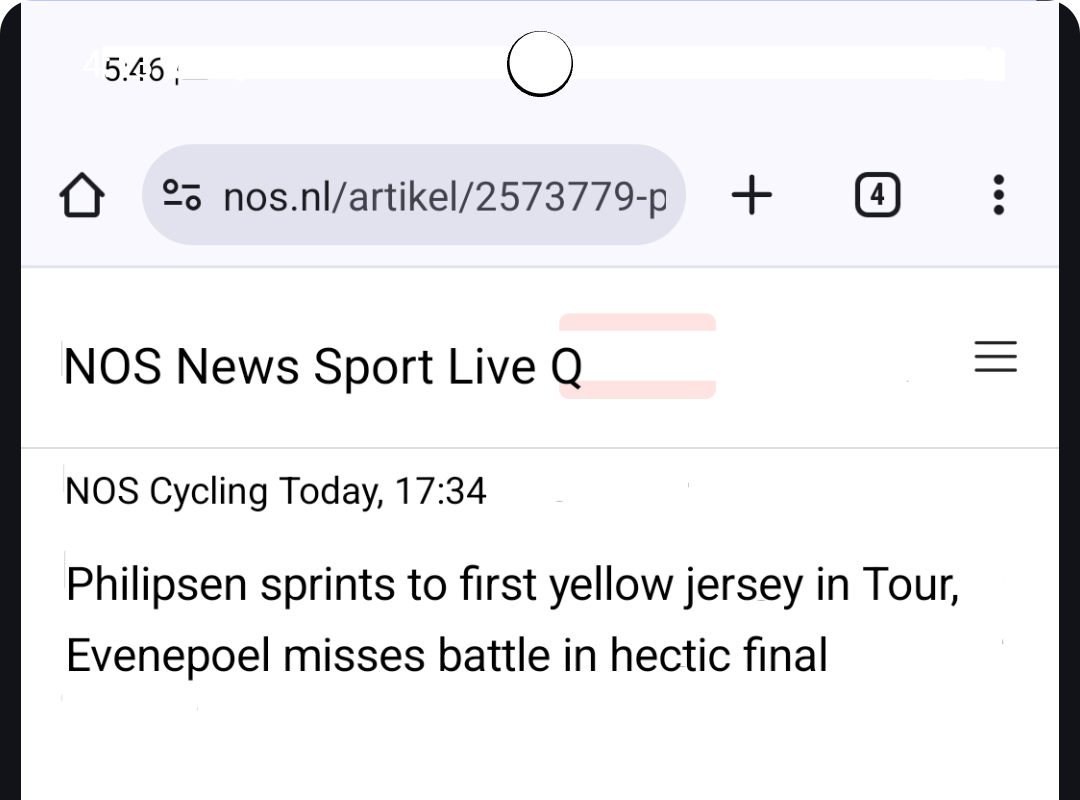

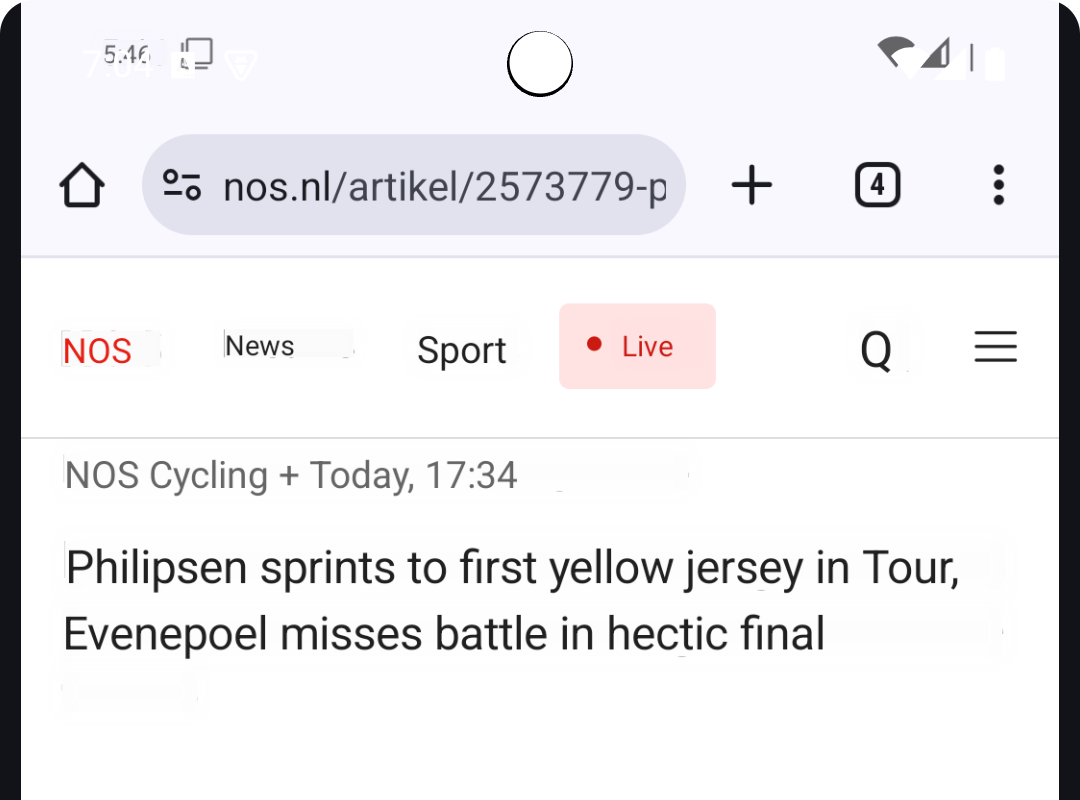

Check the header ("NOS", "Nieuws", "Sport", "Live")

This conveniently also fixes the color of the "Live" button, as each block is analyzed independently for foreground/background colors.

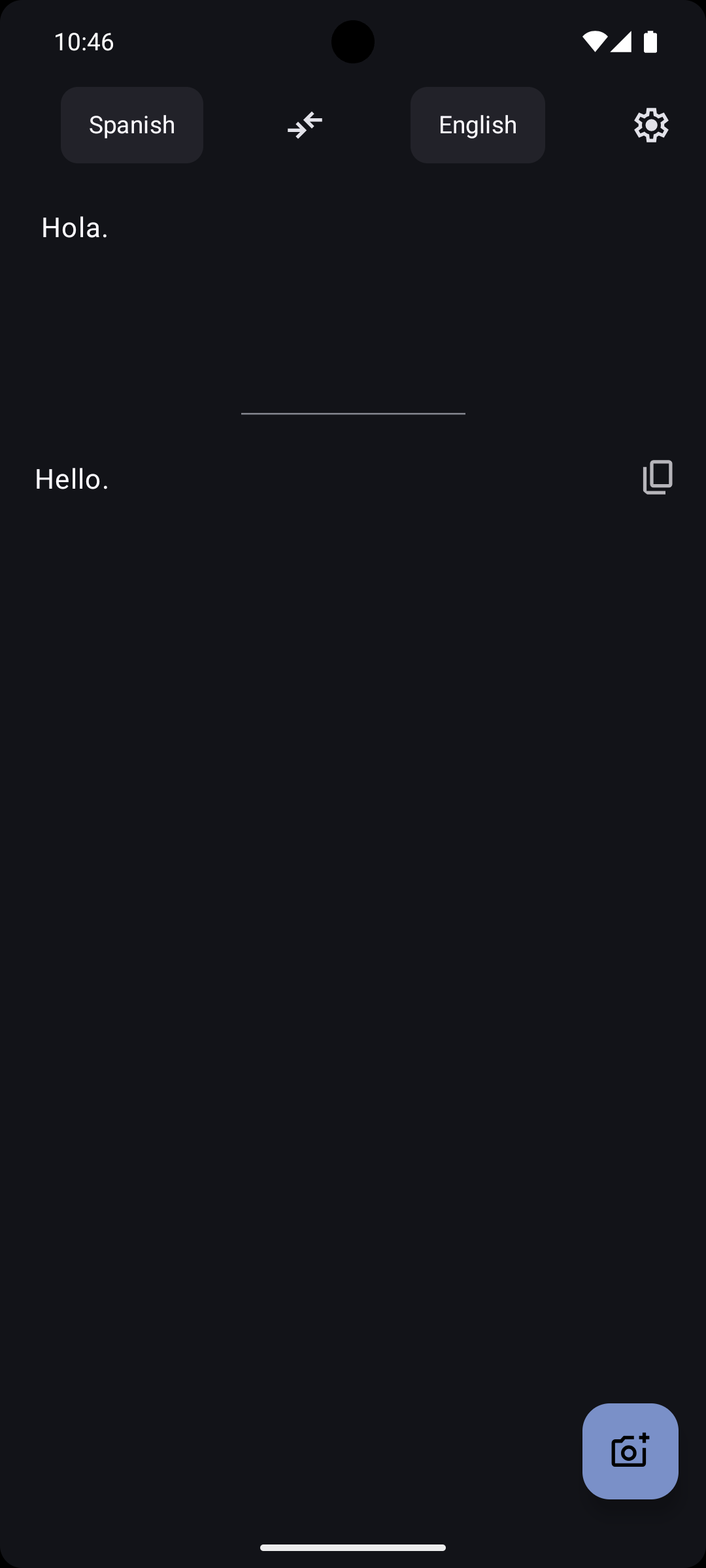

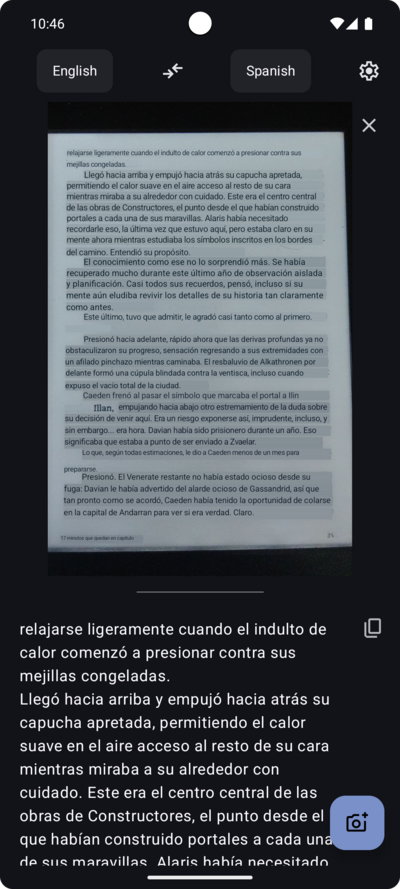

At this point, the app was perfectly functional but the UI was pretty bad, so I spent some time making it a bit nicer

In the end, the app works well enough; Tesseract is limited in many ways, and it won't work with handwriting, certain fonts, or uneven lighting. Some of this is solvable with pre-processing; maybe I'll work on that in the future.

As for performance, images of ~1500x2500px take about a second to run through Tesseract, and another ~300ms to translate, depending on how much text is on it.

I must admit, that I'm a little bit jealous of the offline models that are present on Google Translate, and even on Mac / iOS for OCR, both are much better at detecting text and much faster; but I don't know of any open models which are better than Tesseract.
