Reverse engineering a basic gym app

My gym replaced the perfectly functional NFC entry system with a mandatory app that displays a QR code, which rotates every 30 seconds.

The old system was great: scan the NFC tag (which contained just a unique ID) and walk in.

Now, you need to have a phone (with Google services), an internet connection and somehow it clocks in at 108MB. It's worse in every way; but hey, now they can say they "have an app".

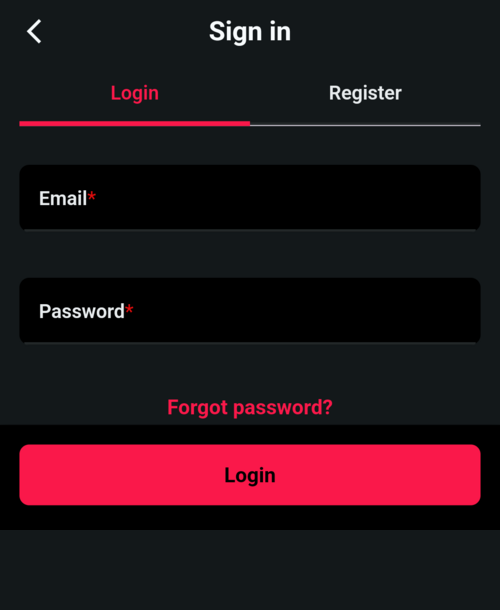

I don't like installing random shit on my phone, so on the day of the app release, I downloaded it on the emulator and got greeted by this

I assumed this app got outsourced to the lowest bidder, and probably didn't implement any security features, so I set up HTTP Toolkit which lets you intercept traffic from your device to inspect it.

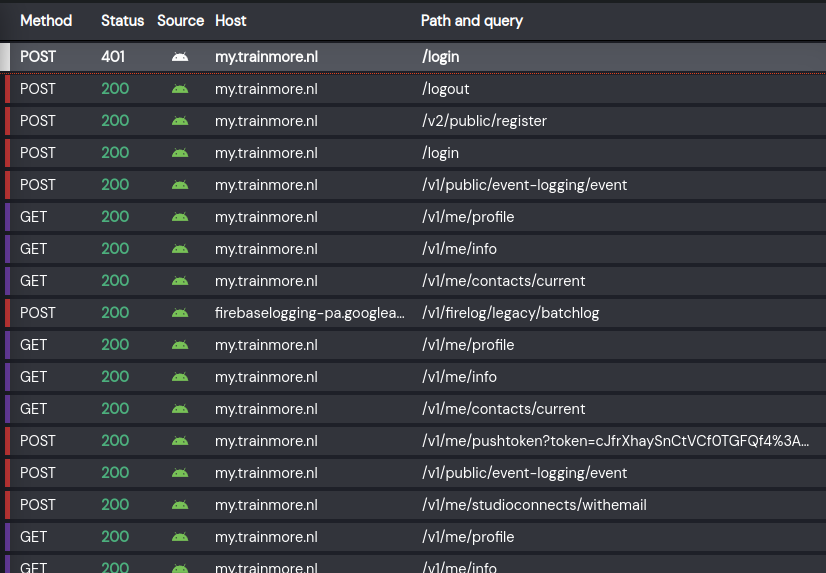

When opening HTTP toolkit, you can see on the left a list of all the requests that are being made

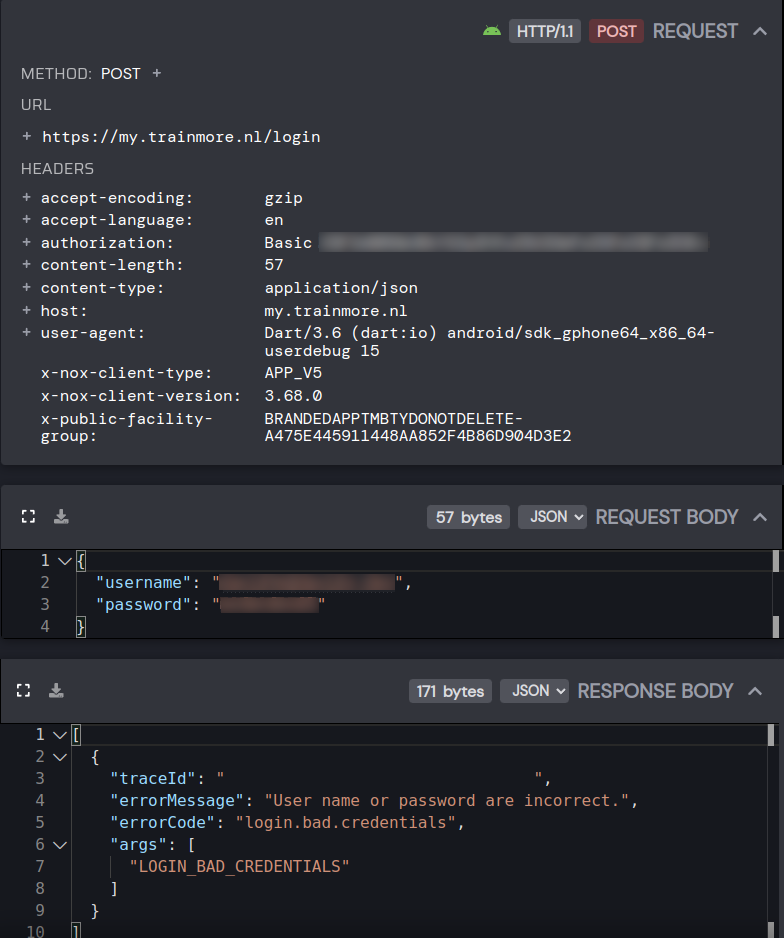

and if you click on one, you can see the detailed request and response

The screenshots are here in case you've never seen how easy it is to start reversing some simple applications. We'll continue in text mode.

The first thing I did was to replay the 'official' request from the network capture, to check if any of the values are nonces or otherwise sequential in nature. As I expected, the replay worked fine, so I started looking into where the request values come from.

Headers:

• authorization is using 'Basic' Authentication, which is just username:password encoded with base64.
• x-nox-client-type, x-nox-client-version and x-public-facility-group seem app related, let's keep them as they are¹
• The rest are generic headers, usually not necessary, but we can keep them

The payload is just {"username": "...", "password": "..."}

Why is the username+password both part of the payload and part of the headers?

If we send a properly formatted request:

FACILITY_GROUP = "BRANDEDAPPTMBTYDONOTDELETE-..."
HEADERS = {
    "x-public-facility-group": FACILITY_GROUP,
    "x-nox-client-type": "APP_V5",
    "x-nox-client-version": "3.68.0",
}


class LoginRequest(BaseModel):
    username: str
    password: str


basic = HTTPBasicAuth(username, password)
r = requests.post(LOGIN_URL, headers=HEADERS, auth=basic,
                 json={"username": username, "password": password})

then we get back

{"login_response": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa"}

where login_response is just a token we will need to use from now on. It seems like this token does not have a time to live -- it does not expire as time passes.

The actually useful endpoint that I need, is the one to generate a QR code, and the request changes slightly:

r = requests.get(QR_CODE_URL, headers={**HEADERS, "x-auth-token": login_response})

Here we dropped the basic auth, and instead we are passing the x-auth-token header.

The response we get back is

{
  "format": "QR_CODE",
  "expiryDate": "2025-07-23T17:05:30Z",
  "content": "{\"code\":\"0000000000000000000\"}"
}

Yes, the QR code wraps the actual payload in JSON.

The codes always last until the next 30s window (every minute, until :00 or :30), so if you request a code at :29, it will expire after one second, sucks for you, try again.

If we look at the app, the QR code looks like this

I don't know how limited the machines that scan the code are, so I used Binary Eye to get metadata² about the QR code itself, and got:

• Error correction level: "low"
• Version: 2
• Mask: 7

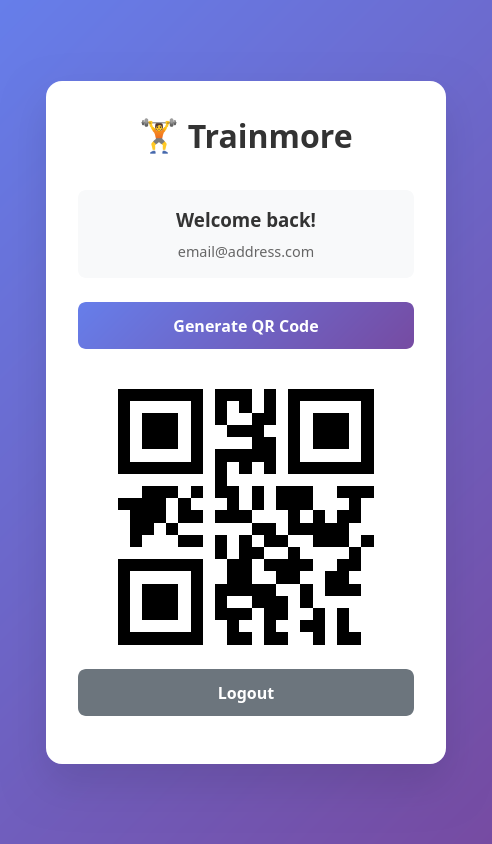

With this, I had everything I needed to generate QR codes, so I made a basic HTML application that will do what I need:

The app worked perfectly and I managed to get into the gym with it, but I was still not sure about whether the constants in the request headers (BRANDEDAPPTMBTYDONOTDELETE-..., APP_V5, 3.68.0) were device/account specific, so I extracted the APK from the emulator:

$ adb shell pm list packages | grep trainmore
package:com.mysports.branded.trainmore
$ adb shell pm path com.mysports.branded.trainmore
package:/data/app/~~u3zcUID1XGr2ZfGNqbGeRA==/com.mysports.branded.trainmore-XcIwZriiEGt-2yOWBdTZjg==/base.apk
package:/data/app/~~u3zcUID1XGr2ZfGNqbGeRA==/com.mysports.branded.trainmore-XcIwZriiEGt-2yOWBdTZjg==/split_config.arm64_v8a.apk
package:/data/app/~~u3zcUID1XGr2ZfGNqbGeRA==/com.mysports.branded.trainmore-XcIwZriiEGt-2yOWBdTZjg==/split_config.en.apk
package:/data/app/~~u3zcUID1XGr2ZfGNqbGeRA==/com.mysports.branded.trainmore-XcIwZriiEGt-2yOWBdTZjg==/split_config.xxhdpi.apk
$ adb pull /data/app/~~u3zcUID1XGr2ZfGNqbGeRA==/com.mysports.branded.trainmore-XcIwZriiEGt-2yOWBdTZjg==/split_config.arm64_v8a.apk

I took this split_config.arm64_v8a.apk and fed it through this decompiler, running grep on the result is promising

$ grep -R BRANDEDAPP
grep: split_arm64v8a/resources/lib/arm64-v8a/libapp.so: binary file matches

and reading the strings from the file, we can find that these values are part of the build, so, not account specific.

$ strings split_arm64v8a/resources/lib/arm64-v8a/libapp.so| grep -E 'BRANDEDAPPTMB|APP_V5'
APP_V5
BRANDEDAPPTMBTYDONOTDELETE-...

at least they stripped symbols from the library, but I wonder why would they even pack the functionality in a shared object like this. Maybe to reuse functionality with their iOS app? Imagine if there was some kind of platform agnostic tag that you could give people..

If you're intimidated by reverse engineering a shitty app, don't be. Most mobile apps are held together with hopes and dreams.

Turns out replacing an NFC tag with a "modern" app solution is as stupid as it sounds.
